FLEXIBLE GABION CONTFLEXDIQUE BARRIER:

The contflexdique flexible gabion barrier is a type of barrier compartmentalized into cells, totally flexible, which has also proven its usefulness in terms of its use in military fortification and flooding, as well as other uses in civil works.

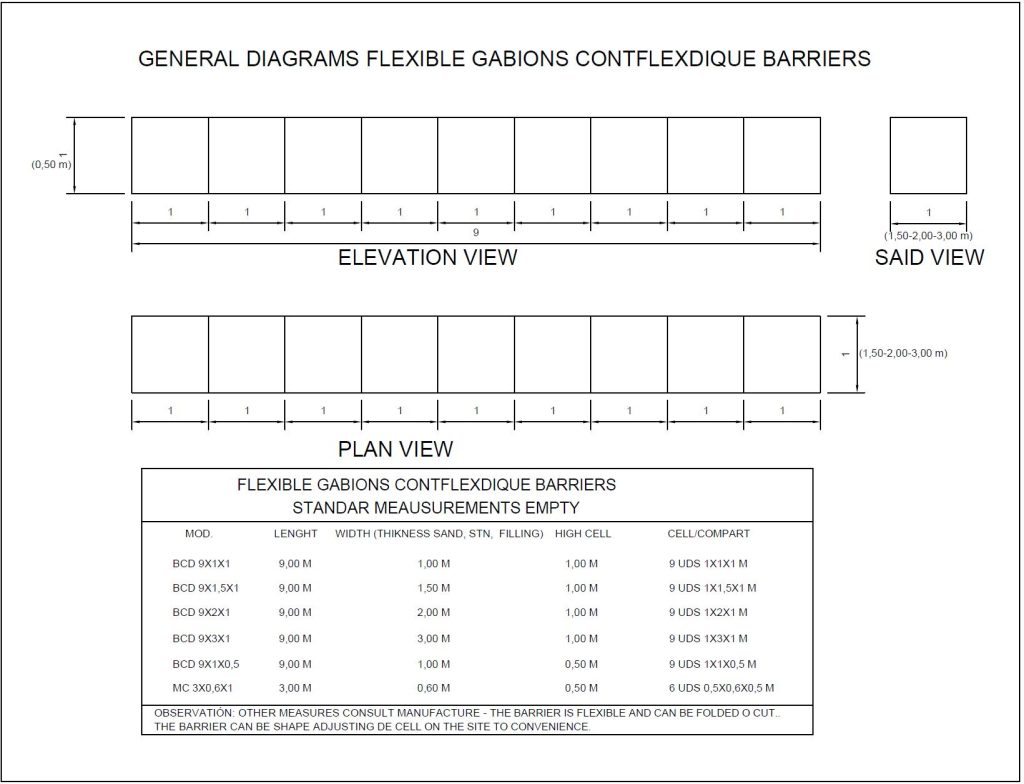

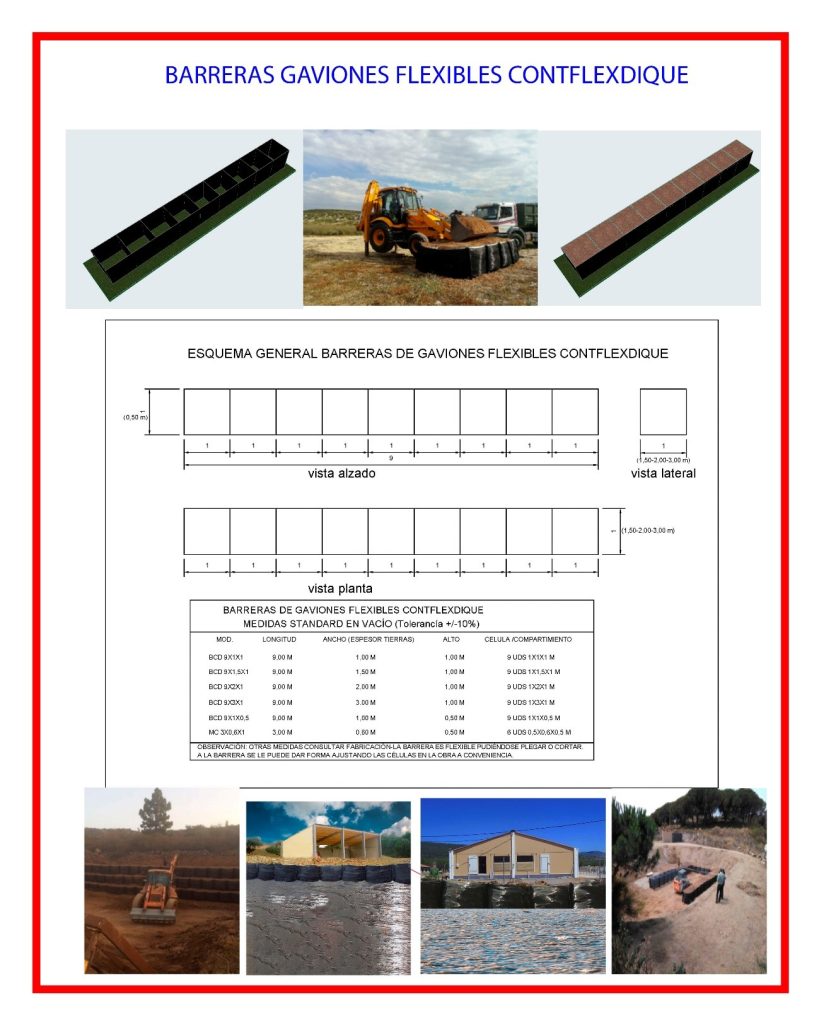

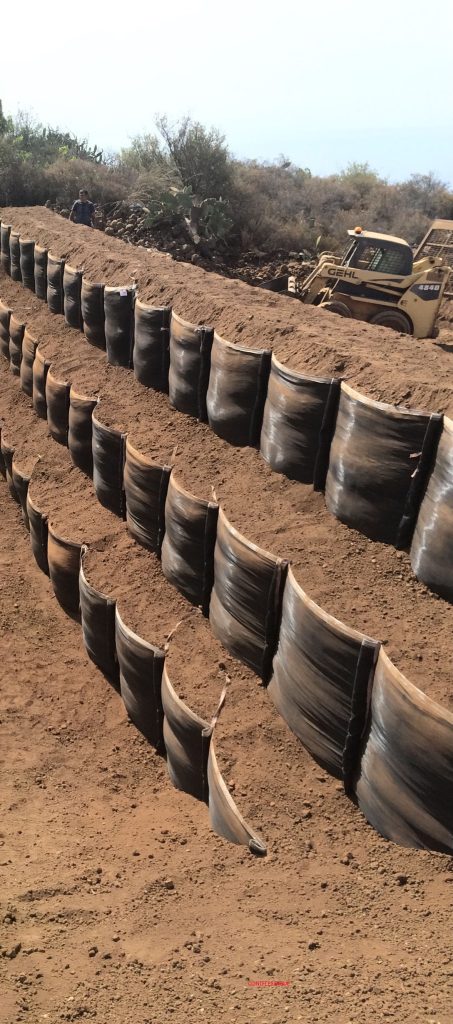

It is made up of cells joined together to form a barrier. It is made up of two layers, an inner one that acts as a waterproof layer in a large part of the cell and an outer one made of microperforated high-density polyethylene technical fabric, highly resistant and tenacity. This makes the barrier flexible and its weight approx. it is 9 kg, which means that a single soldier can carry it manually (a soldier can carry up to two barriers without much effort). In addition, the contflexdique barrier has steps or vertical holes in each corner of the cell or cell through which to pass a spike or steel bar to shape them if necessary. It is important to consider that 18 m of barrier length is what a single soldier can carry by hand for what it can mean in the event of possible risks. Contflexdique flexible gabion barriers are filled with sand, gravel, or other materials, hanging from a steel support for filling with backhoe loaders, loaders, mini machines, etc. This support is running as the barrier fills.








ADVANTAGES OF THE FLEXIBLE GABION CONTFLEXDIQUE BARRIER:
  • QUICK INSTALLATION BY HANGING BRACKET.
  • QUICK AND EASY FILLING SYSTEM
  • ADAPTABLE TO MULTIPLE FORMS.
  • IT HAS TUBE-SHAPED STEPS IN THE CORNERS OF THE BARRIER CELLS, FOR THE INSERTION OF BARS OR OTHERS IF YOU ARE INTERESTED IN GIVING SPECIAL SHAPES OR HANGING THE BARRIERS WITH PEGS OR STEEL BARS (THESE MUST BE REMOVED AS THE BARRIER IS FILLED).
  • LOW WEIGHT OF THE CONTFLEXDIQUE BARRIER (APPROX. 9-11 KG) BCD 9X1X1; BCD 9X1,5X1; BCD 9X2X1.
  • BARRIER CARRIED BY A SINGLE SOLDIER (ONE SOLDIER CAN EASILY CARRY UP TO TWO BARRIERS MANUALLY).

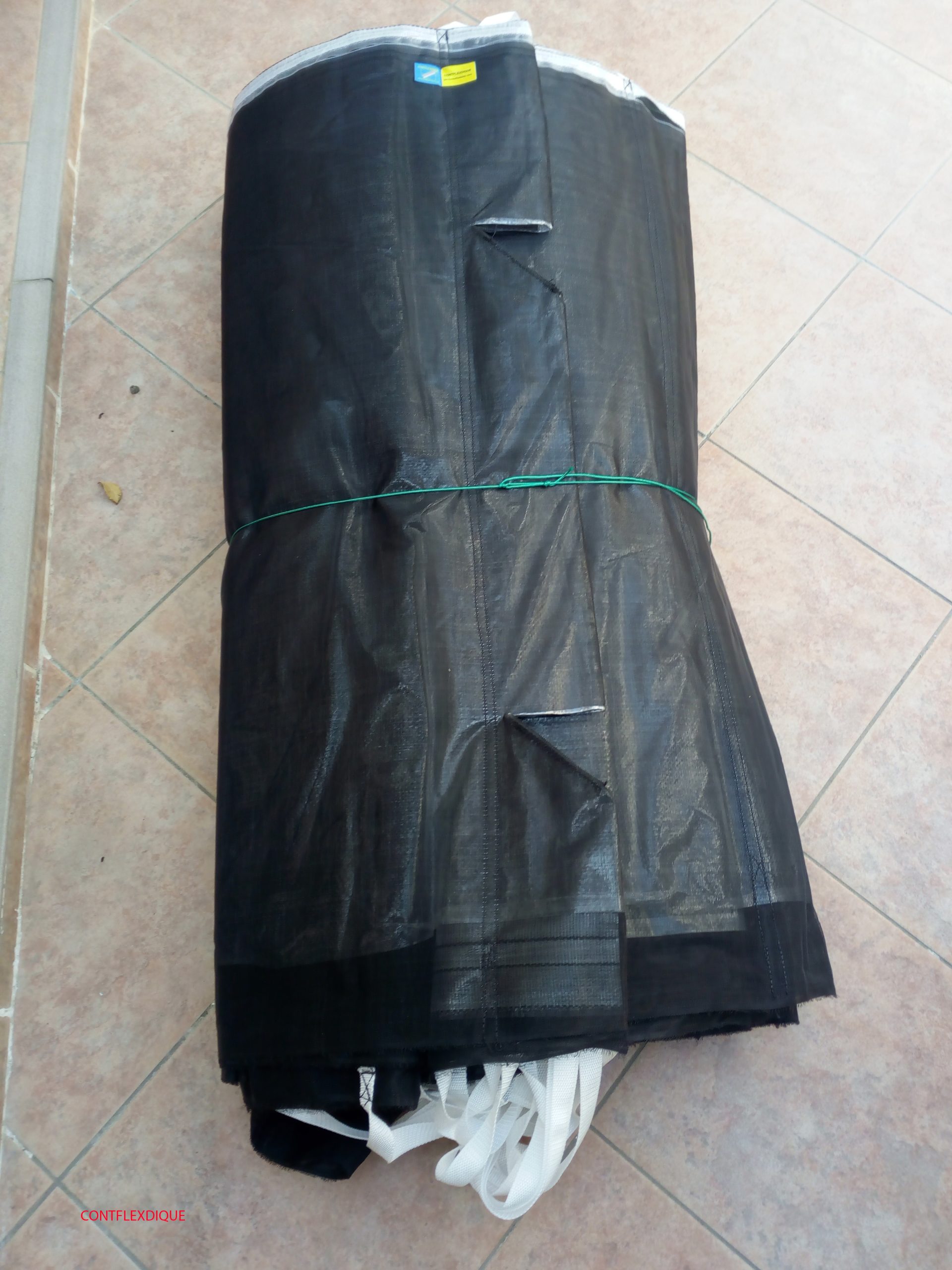

  • LITTLE SPACE NEEDED FOR TRANSPORTATION. FLEXIBLE, IT CAN BE FOLDED AT CONVENIENCE IF NECESSARY.
  • EASY TRANSPORT BY AIR MEANS DUE TO ITS LOW WEIGHT.
  • IT DOES NOT GIVE OFF SPLINTERS IN EXPLOSIONS OR DECOMPOSITION AS IT DOES NOT CARRY STEEL.
  • HEIGHT ASSEMBLED IN PYRAMIDAL SHAPE FOR GREATER TIPPING SAFETY.
  • GREATER PROTECTION AGAINST FLOODING (INTERIOR WATERPROOF LAYER TO DELAY THE ENTRY OF WATER, IT IS NOT A PERFECT WATERPROOFING LIKE A POOL).
  • IT DOES NOT PRODUCE DEBRIS IF YOU WANT TO REMOVE THE BARRIER AND IT IS ALSO RECYCLABLE, REMAINING IN PLACE THE EARTH MATERIAL ITSELF OF FILLING.
  • LOW ECONOMIC COST IN RELATION TO ITS PERFORMANCE AND ADVANTAGES OF USE.
  • MAXIMUM LOGISTICS IN TRANSPORTATION AND MOVEMENTS OF THE CONTFLEXDIQUE BARRIERS.

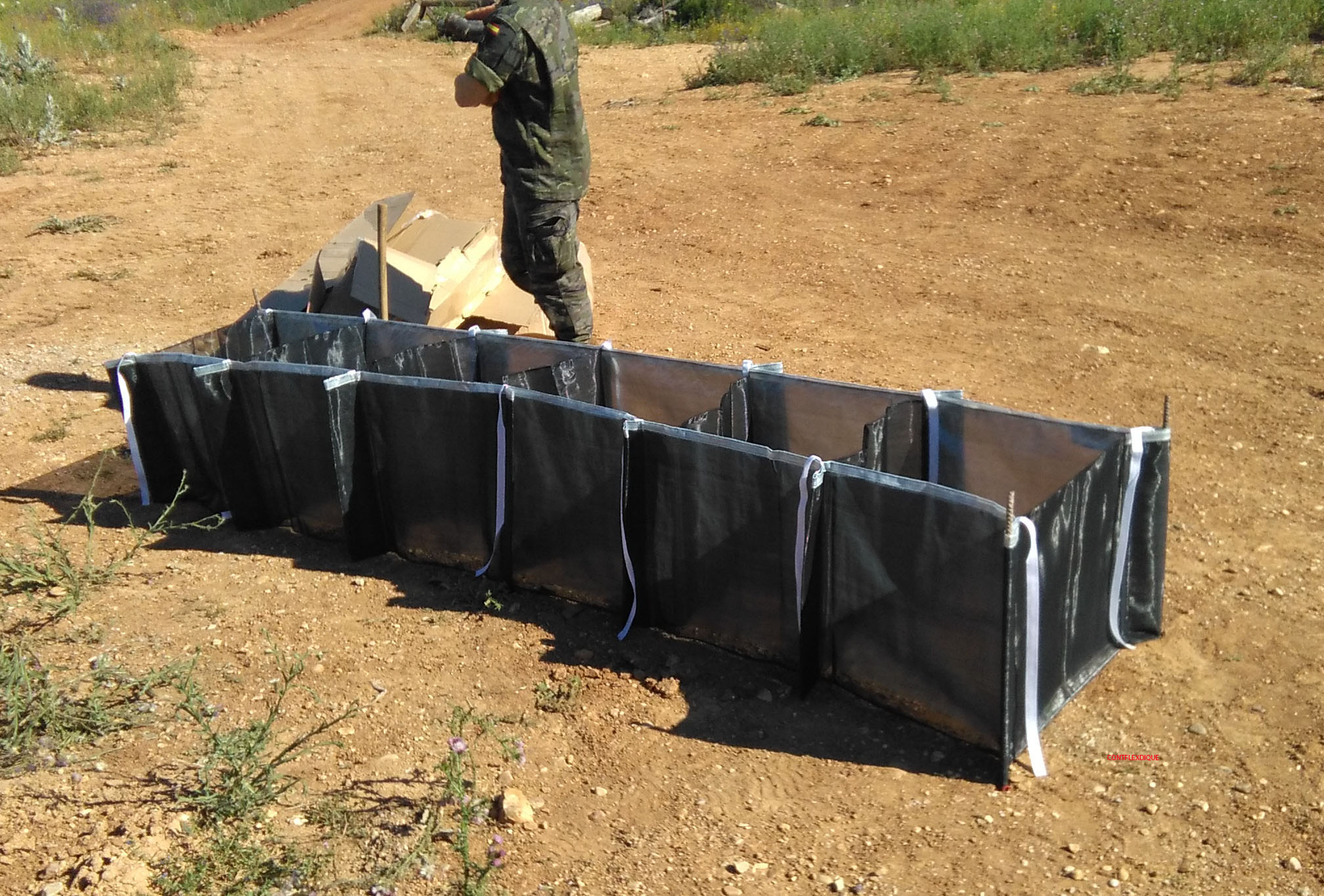

THE “MINICONTFLEX” CONTFLEXDIQUE BARRIER

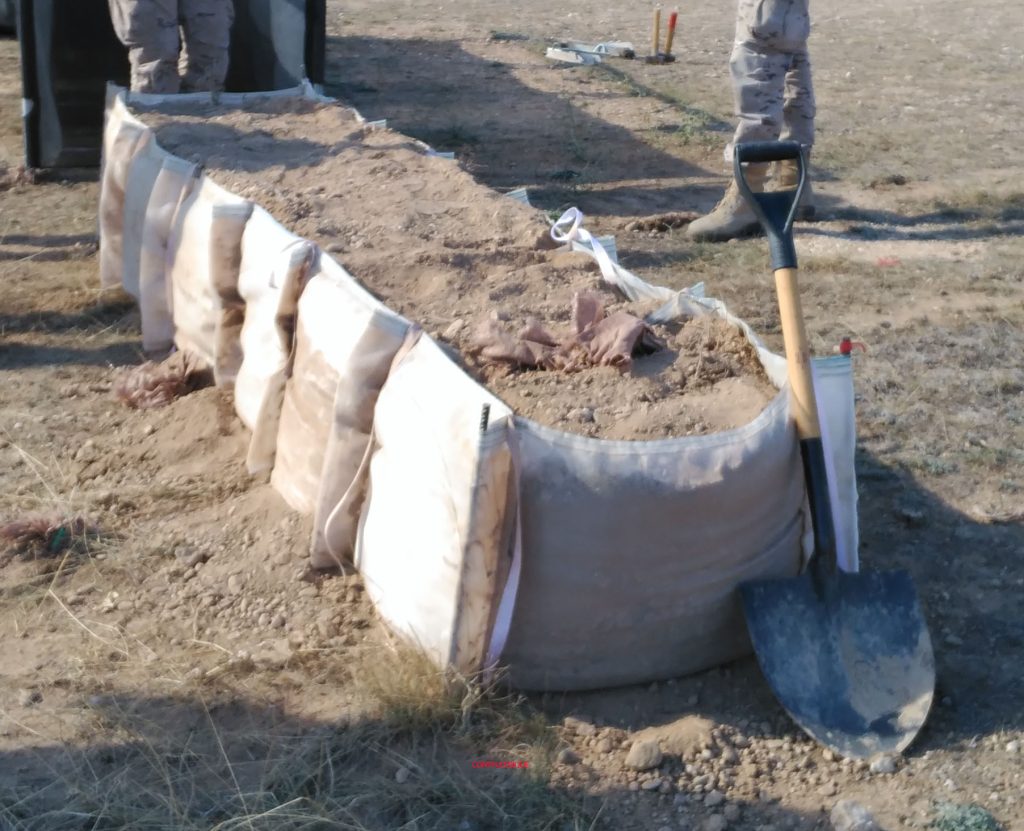

Minicontflex, is a barrier designed so that the combatant soldier can carry it in his backpack and fill it manually in a simple way, give it the desired shape, and use it as if it were sandbags.

Minicontflex can be filled by a single soldier, since he does not need the help of his partner if circumstances so require. It complements the main “Contflexdique” barriers, and its standard size is approx. 3-meter empty. It is a perfect parapet, adopting a minimum thickness filling of 0,60 meter and 0,50 meter high, logically, they can be placed to obtain different thicknesses and protection heights with the same type of barrier, combining them at convenience.

It consists of six cells joined together to form a barrier. It is made up of two layers, an inner one that acts as a waterproof layer in a large part of the cell and an outer one made of microperforated high-density polyethylene technical fabric, highly resistant and tenacity. Its weight approx. is 1.8kg.

In addition, the minicontflex barrier has steps or vertical holes in each corner of the cell  so that a spike or steel bar can be passed through them to shape them if necessary.



ADVANTAGES OF THE “MINICONTFLEX”
FLEXIBLE GABION CONTFLEXDIQUE BARRIER:
  • QUICK INSTALLATION BY HANGING BRACKET.
  • QUICK AND EASY FILLING SYSTEM
  • ADAPTABLE TO MULTIPLE FORMS.
  • IT HAS TUBE-SHAPED STEPS IN THE CORNERS OF THE BARRIER CELLS, FOR THE INSERTION OF BARS OR OTHERS IF YOU ARE INTERESTED IN GIVING SPECIAL SHAPES OR HANGING THE BARRIERS WITH PEGS OR STEEL BARS (THESE MUST BE REMOVED AS THE BARRIER IS FILLED).
  • LOW WEIGHT OF THE CONTFLEXDIQUE BARRIER (APPROX. 9-11 KG) BCD 9X1X1; BCD 9X1,5X1; BCD 9X2X1.
  • BARRIER CARRIED BY A SINGLE SOLDIER (ONE SOLDIER CAN EASILY CARRY UP TO TWO BARRIERS MANUALLY).
  • LITTLE SPACE NEEDED FOR TRANSPORTATION. FLEXIBLE, IT CAN BE FOLDED AT CONVENIENCE IF NECESSARY.
  • EASY TRANSPORT BY AIR MEANS DUE TO ITS LOW WEIGHT.
  • IT DOES NOT GIVE OFF SPLINTERS IN EXPLOSIONS OR DECOMPOSITION AS IT DOES NOT CARRY STEEL.
  • HEIGHT ASSEMBLED IN PYRAMIDAL SHAPE FOR GREATER TIPPING SAFETY.
  • GREATER PROTECTION AGAINST FLOODING (INTERIOR WATERPROOF LAYER TO DELAY THE ENTRY OF WATER, IT IS NOT A PERFECT WATERPROOFING LIKE A POOL).
  • IT DOES NOT PRODUCE DEBRIS IF YOU WANT TO REMOVE THE BARRIER AND IT IS ALSO RECYCLABLE, REMAINING IN PLACE THE EARTH MATERIAL ITSELF OF FILLING.
  • LOW ECONOMIC COST IN RELATION TO ITS PERFORMANCE AND ADVANTAGES OF USE.
  • MAXIMUM LOGISTICS IN TRANSPORTATION AND MOVEMENTS OF THE CONTFLEXDIQUE BARRIERS.
NATO STOCK NUMBER (NSN) PRODUCTS PRESENTED:

FLEXIBLE MODULAR GABION BCD(9X1X1)05: NSN 5680-33-2148209

FLEXIBLE MODULAR GABION BCD(9X1,5X1)06: NSN 5680-33-2148210

FLEXIBLE MODULAR GABION BCD(9X2X1)07: NSN 5680-33-2148208

FLEXIBLE MODULAR GABION MC(3X0,6X0,5)08: NSN 5680-33-2148207
