MILITARY FORTIFICATION

FORTIFICATIONS MILITAIRES-MILITÄRISCHE BEFESTIGUNG-FORTIFICACIONES MILITARES

MILITARY SYSTEM HESCO BASTION-CONTFLEXDIQUE FLEXIBLE GABIONS BARRIERS

MILITARY DEFENSIVE CONTFLEXDIQUE BARRIER-FLOODWALL CONTFLEXDIQUE BARRIER-FLOOD BARRIER BAG CONTFLEXDIQUE-FLOODLINES CONTFLEXDIQUE

RETAINING WALL CONTFLEXDIQUE

EROSION CONTROL CONTFLEXDIQUE

PRESENTATION

Greetings from military-fortification.com

Military fortification, after the experience developed by the company contflexdique sl, in military fortification systems with contflexdique flexible gabion barriers, in its use or application as an anti-flood barrier, emergency repairs, control and stabilization of slopes, landslides, formation of dams or dikes, diversion of water currents, lamination of floods of water in ravines, retention of water, reservoirs, construction pillars or bridge abutments, protection of explosions, etc.

It has the pleasure of presenting to the international market THE FLEXIBLE GABION CONTFLEXDIQUE BARRIER AND THE “MINICONTFLEX” CONTFLEXDIQUE BARRIER.

THE HESCO BASTION (HESCO MIL-HESCO BARRIER) AND THE FLEXIBLE GABION BARRIER CONTFLEXDIQUE

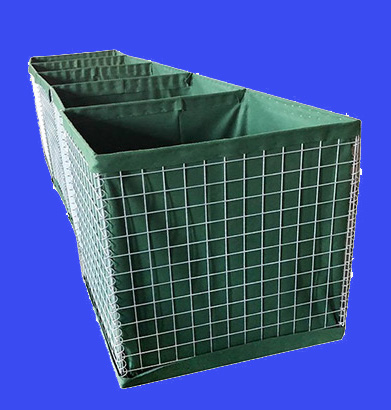

The Hesco Bastion is a well-known type of fortification barrier in the international market that has amply proven its usefulness in terms of its use in military fortification and flooding.

It is made up of cells joined together to form a barrier. Externally it is a metallic mesh and internally it has a geotextile for the containment of landfill. Normally the barriers are 9 cells and make up an approximate length of 10 meters. Its measurements vary in widths and heights according to models. They are barriers that have a considerable weight approx. 150 kg, and must be transported with vehicles or several soldiers.

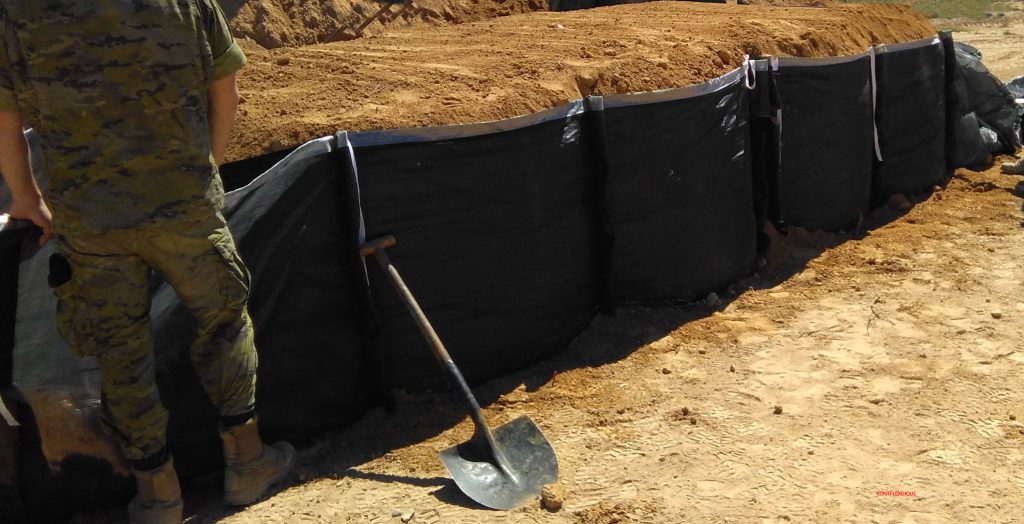

The contflexdique flexible gabion barrier is a type of barrier compartmentalized into cells, totally flexible, which has also proven its usefulness in terms of its use in military fortification and flooding, as well as other uses in civil works.

It is made up of cells joined together to form a barrier. It is made up of two layers, an inner one that acts as a waterproof layer in a large part of the cell and an outer one made of microperforated high-density polyethylene technical fabric, highly resistant and tenacity. This makes the barrier flexible and its weight approx. it is 9 kg, which means that a single soldier can carry it manually (a soldier can carry up to two barriers without much effort). In addition, the contflexdique barrier has steps or vertical holes in each corner of the cell or cell through which to pass a spike or steel bar to shape them if necessary. It is important to consider that 18 m of barrier length is what a single soldier can carry by hand for what it can mean in the event of possible risks. Contflexdique flexible gabion barriers are filled with sand, gravel, or other materials, hanging from a steel support for filling with backhoe loaders, loaders, mini machines, etc. This support is running as the barrier fills.

Like the hesco bastion, bastion mil, and hesco barrier systems, the contflexdique barrier has no background.
